When it comes to shipping oversized, heavy, or irregularly shaped cargo from China to the USA and Mexico, flat rack containers are the unsung heroes of global logistics. Unlike standard dry containers, these specialized units are designed to handle cargo that simply won’t fit in a 20ft or 40ft standard box—from heavy machinery and construction equipment to large industrial parts and project cargo.
Whether you’re a freight forwarder, a logistics manager, or a business owner moving high-value goods, understanding how flat rack shipping works, its costs, and best practices is critical to avoiding delays, extra fees, and damage to your cargo. In this complete guide, we’ll break down every aspect of flat rack container shipping from China to the USA and Mexico, so you can ship with confidence.

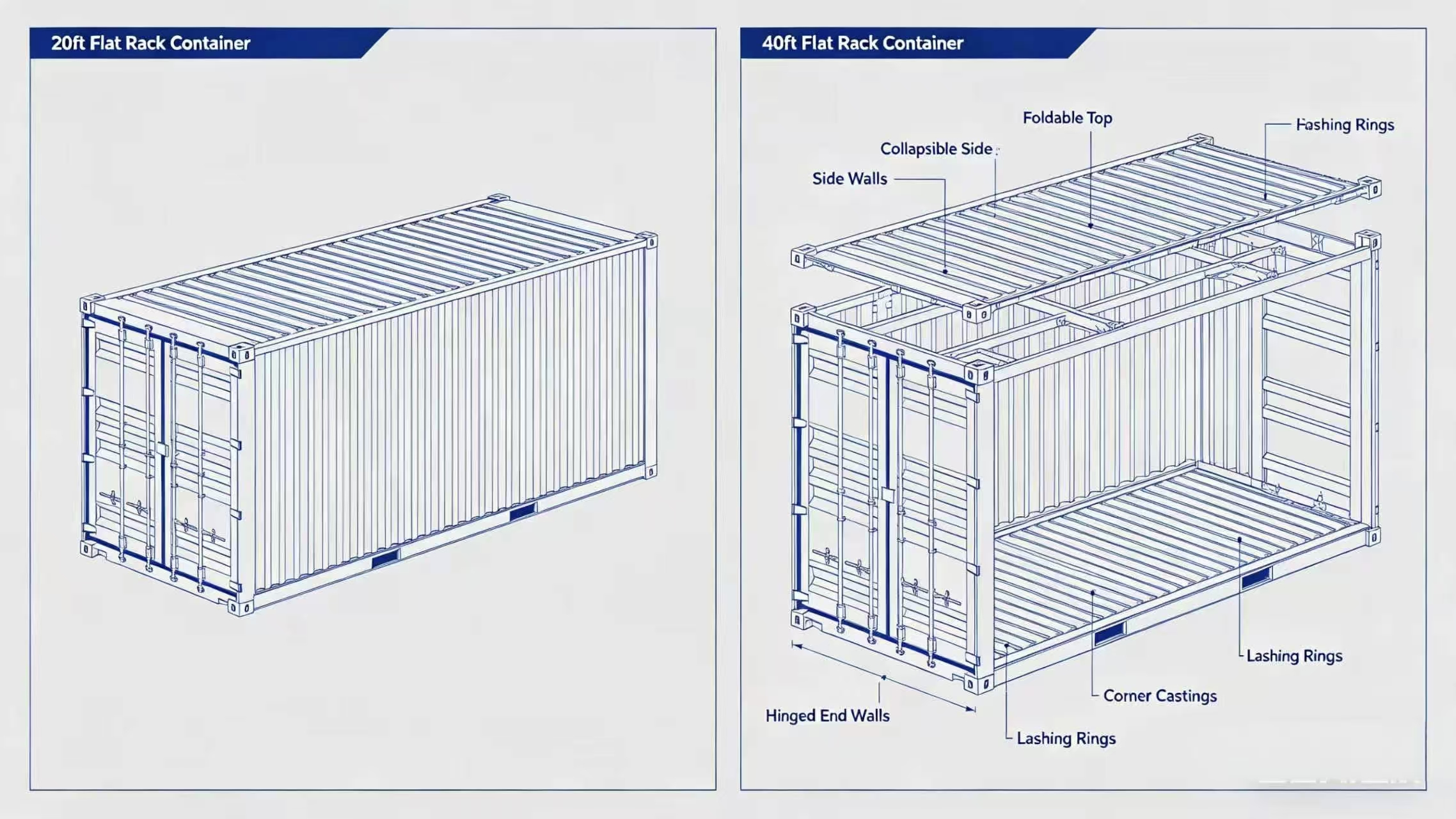

A flat rack container is a specialized shipping container with a base and two end walls (or collapsible sides), designed to carry cargo that exceeds the dimensions of a standard container. The open sides and top allow for loading from the top, side, or end, making it ideal for oversized, heavy, or awkwardly shaped goods.
20ft Flat Rack: Ideal for medium-heavy cargo, with a maximum payload of around 30 tons.
40ft Flat Rack: Suited for longer, larger cargo, with a payload capacity of up to 40 tons.
Collapsible Flat Rack: Can be folded when empty, reducing storage and return shipping costs.
Fixed End Flat Rack: Rigid end walls for extra stability when shipping extremely heavy cargo.
Heavy machinery (excavators, bulldozers, generators)
Construction equipment (cranes, steel beams, pipes)
Industrial parts (turbines, transformers, large engines)
Project cargo (wind turbine blades, yachts, boats)
Vehicles (trucks, buses, heavy-duty trucks)
Shipping flat rack cargo from China to North America follows a structured process—here’s what to expect:
Exact dimensions (length, width, height)
Total weight
Cargo type and value
Loading/unloading requirements
Based on this, your forwarder will recommend the right flat rack size (20ft or 40ft) and type (collapsible/fixed).
Next, your forwarder will book the flat rack container with the shipping line (e.g., Maersk, MSC, CMA CGM) and schedule pickup from your factory or warehouse in China.

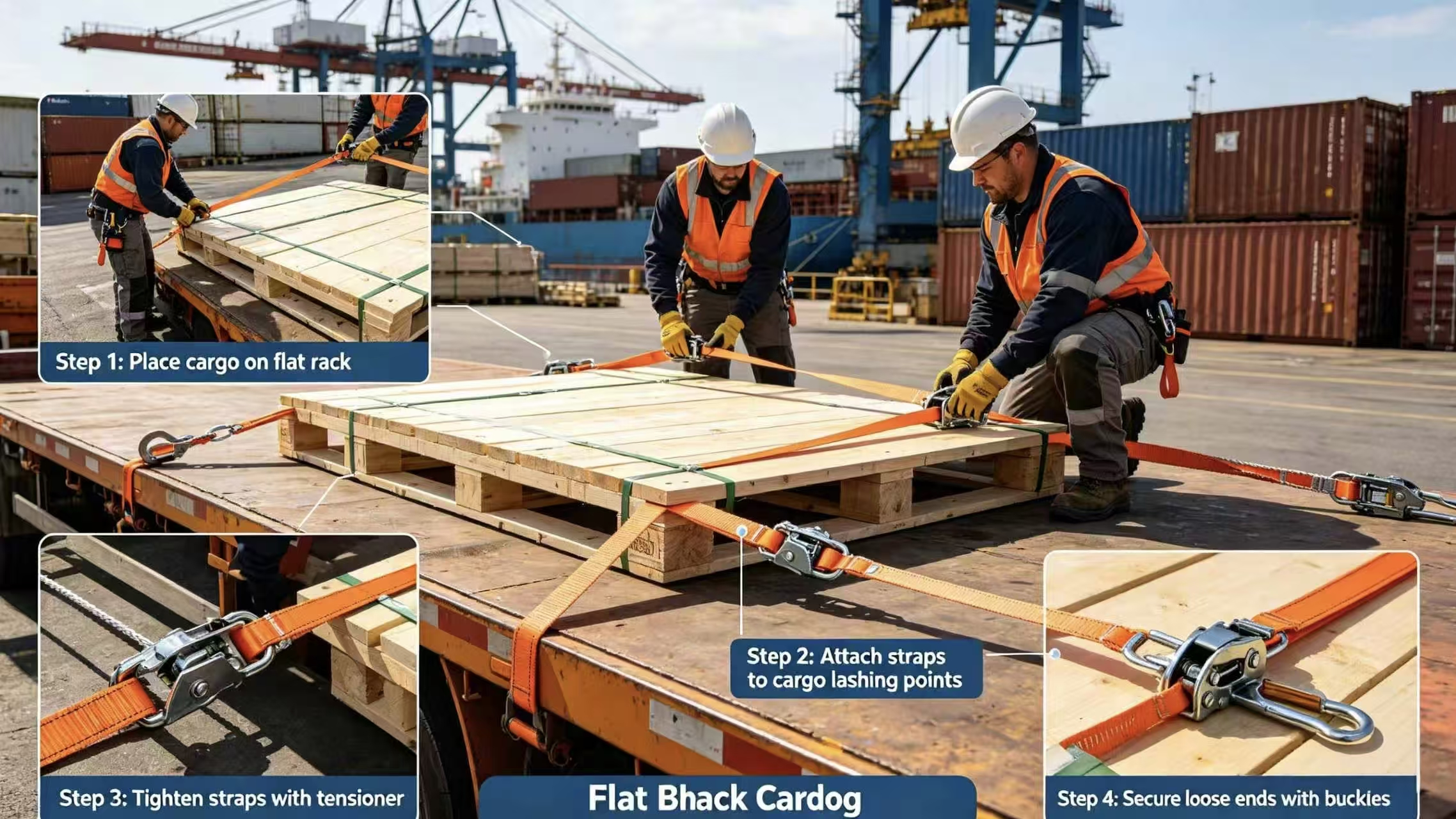

This is one of the most critical steps. Your cargo will be loaded onto the flat rack using cranes or forklifts, then secured with heavy-duty lashing, chains, and braces to prevent movement during transit. Proper securing is mandatory to avoid port inspections and cargo damage.
Before the cargo departs, you’ll need to complete Chinese export customs clearance, including providing commercial invoices, packing lists, and export licenses (if required).
Upon arrival, your cargo will go through import customs clearance in the USA or Mexico. This requires:
Commercial invoice
Packing list
Bill of Lading (B/L)
Import licenses (if applicable)
Customs duties and taxes payment
Flat rack shipping costs are higher than standard container shipping, due to the specialized equipment and handling. Here’s a breakdown of the main cost components:
表格
| Cost Item | Description |
|---|---|
| Flat Rack Container Rental | 20ft: ~$800-$1,500 / 40ft: ~$1,200-$2,500 (one-way rental) |
| Ocean Freight | ~$3,000-$8,000 per 20ft flat rack; ~$5,000-$12,000 per 40ft flat rack (varies by season, carrier, route) |
| Loading & Unloading Fees | ~$200-$800, depending on cargo weight and complexity |
| Lashing & Securing | ~$100-$500, for chains, braces, and professional securing |
| Customs Duties & Taxes | USA: 0-25% (based on HS code); Mexico: 0-20% (varies by cargo type) |
| Inland Transportation | China pickup + USA/Mexico delivery: ~$500-$3,000, depending on distance |
| Insurance | ~0.3-0.5% of cargo value, for all-risk coverage |
Note: Prices are estimates and fluctuate based on market conditions, carrier, and cargo specifics. Always get a detailed quote from your freight forwarder.
To avoid delays, extra fees, and cargo damage, keep these critical tips in mind:
Never underestimate your cargo’s size or weight—incorrect measurements can lead to port rejections, extra fees, or even cargo being refused loading. Always provide precise, verified dimensions to your forwarder.
USA: Ensure your cargo complies with CBP (Customs and Border Protection) rules, including ISF (Importer Security Filing) requirements.
Mexico: Comply with SAT (Tax Administration Service) regulations, and ensure all documentation is accurate to avoid clearance delays.
Not all carriers offer reliable flat rack service to the USA and Mexico. Partner with a forwarder like STU Supply Chain, with extensive experience in flat rack shipping and strong relationships with top carriers (Maersk, MSC, CMA CGM).
At STU Supply Chain, we specialize in end-to-end flat rack container shipping from China to the USA and Mexico, with over 10 years of experience in project cargo and oversized freight.
✅ Free cargo assessment and container sizing
✅ Competitive rates with top global carriers
✅ Professional loading, lashing, and securing
✅ Full customs clearance in China, USA, and Mexico
✅ Door-to-door delivery to your final destination
✅ Real-time cargo tracking throughout the entire journey
✅ 24/7 customer support for all your logistics needs
Whether you’re shipping heavy machinery to Los Angeles, construction equipment to Mexico City, or project cargo to Houston, we have the expertise and network to get your cargo there safely, on time, and on budget.
